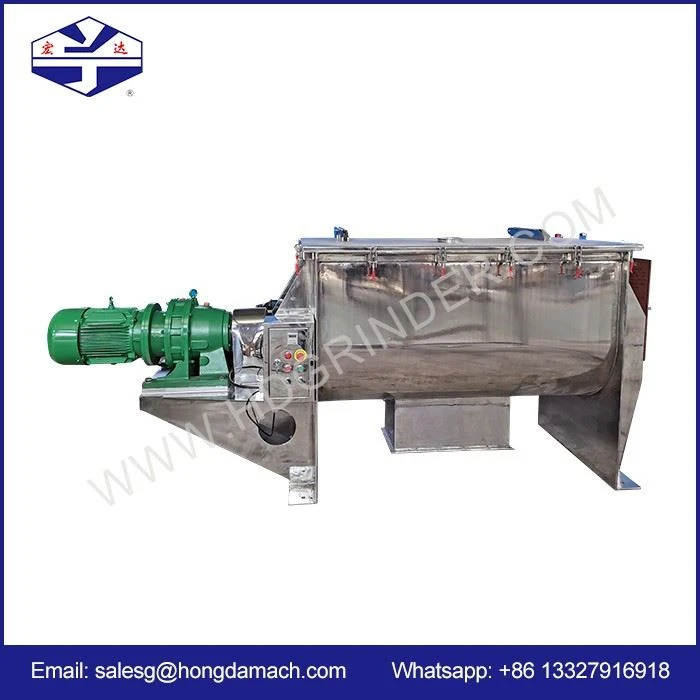

Horizontal Mixer for Food

Product Description The horizontal mixer for food is an extremely versatile and efficient mixing solution that ensures uniform mixing of dry powders and granules. To achieve the best mixing results, ensure that the mixer vessel is filled to around two-thirds of its capacity. The specially...

Send Inquiry

Description

Product Description

The horizontal mixer for food is an extremely versatile and efficient mixing solution that ensures uniform mixing of dry powders and granules. To achieve the best mixing results, ensure that the mixer vessel is filled to around two-thirds of its capacity. The specially designed shape and mixing belt of the horizontal mixer for food products provide ample space for the mixing of dry products, making it an ideal choice for food processing plants. Whether you're dealing with food ingredients or additives, the horizontal mixer offers a reliable and efficient mixing solution. Trust it to deliver excellent mixing results every time.

Operations:

●A valve that is specifically designed for discharge is provided at the center or butterfly valve. The valve is constructed in a unique way to ensure optimum performance.

●If you want to add additives to blenders using a pressure spraying system, you can install spray nozzles on your machine. This will ensure that the additives are distributed evenly and efficiently throughout the mixture. With the help of a pressure spraying system and the right kind of nozzles, you can easily customize the composition of your blends and achieve predictable results every time. So why not consider this option and enhance your performance today?

Product parameters

Model	Barrel Volume	loading volume	Mixing time	Stir Motor	Weight
WLDH-100	100L	30-60L	0-99min	1.5-4kw	320kg
WLDH-300	300L	100-180L	0-99min	3-5.5kw	510kg
WLDH-500	500L	200-300L	0-99min	4-11kw	920kg
WLDH-1000	1000L	400-600L	0-99min	7.5-15kw	1450kg
WLDH-1500	1500L	600-900L	0-99min	11-18.5kw	1950kg
WLDH-2000	2000L	800-1200L	0-99min	18.5-30kw	3160kg
WLDH-3000	3000L	1200-1800L	0-99min	18.5-30kw	3300kg
WLDH-4000	4000L	1600-2400L	0-99min	22-37kw	3620kg
WLDH-6000	6000L	2400-3600L	0-99min	37-55kw	5400kg
WLDH-8000	8000L	3200-4800L	0-99min	37-55kw	6880kg
WLDH-10000	10000L	4000-6000L	0-99min	45-75kw	7900kg

image001(001)

Feature

The composition of a food horizontal mixer includes essential components such as a U-shaped container, ribbon mixing blade, and transmission parts. To elaborate, this type of mixer is designed with a U-shaped container that provides ample space for the mixing process. The ribbon mixing blade, integrated within the container, facilitates efficient blending of food ingredients. Furthermore, the mixer is equipped with transmission parts that ensure smooth operation and consistent mixing results.

2) Ribbon includes continuous and disconnected.

Double or triple outer helix is used to make spiral belt blades. The material from both sides is combined with the central inner helix, resulting in a mixed flow as the material is transported from the center to both sides.

image003(001)
