Flour Powder Mixer
video

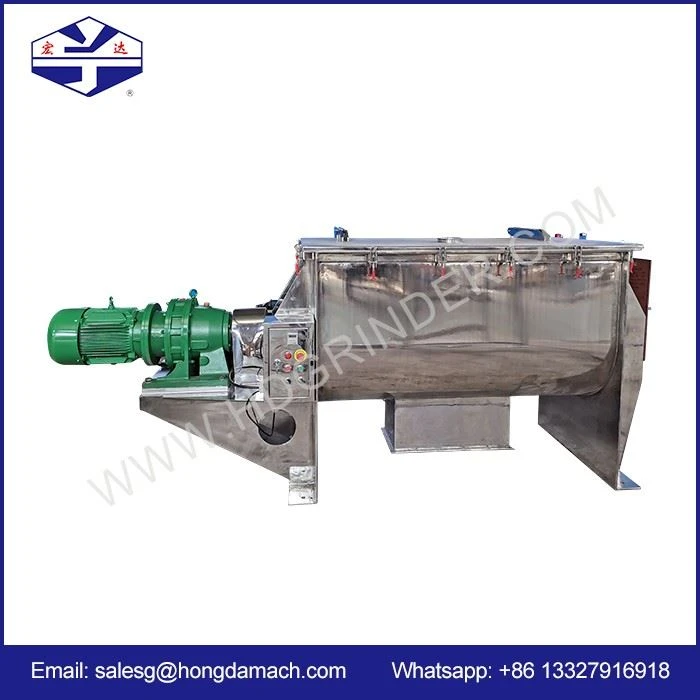

Flour Powder Mixer

Flour Powder Mixer

Product Description The flour powder mixer is a top-of-the-line solution for mixing dry granular powders effectively. It boasts a horizontal U-shaped mixing vessel that comprises a drive system and a ribbon mixer. The mixing element features both inner and outer double helix ribbon agitators,...

Description

Product Description

The flour powder mixer is a top-of-the-line solution for mixing dry granular powders effectively. It boasts a horizontal U-shaped mixing vessel that comprises a drive system and a ribbon mixer. The mixing element features both inner and outer double helix ribbon agitators, which work together to move the material both radially and laterally. This creates a gentle and efficient mixing process that ensures even distribution of all ingredients. Ultimately, the material will be discharged through the central discharge valve. Overall, the flour powder mixer is versatile and ideal for mixing various materials, especially in food processing applications.


Product composition

The flour powder mixer is composed of a container, a screw stirring paddle, and a transition piece. The screw is typically manufactured with either one or three layers. The outer screw serves as the medium through which materials converge from both sides towards the center. On the other hand, the inner screw transports the materials from the center to the sides, facilitating convective mixing of powders and pastes that require incorporation. By reorganizing the given information, a highly analogous content can be generated, while ensuring that the new content is based on the original text. It is important to note that the generated speech should not follow the conversational style utilized by ChapGPT, but rather present the information using a completely different approach, in accordance with the guidelines of the language model.


Product parameters

Model

Barrel Volume

loading volume

Mixing time

Stir Motor

Weight

WLDH-100

100L

30-60L

0-99min

1.5-4kw

320kg

WLDH-300

300L

100-180L

0-99min

3-5.5kw

510kg

WLDH-500

500L

200-300L

0-99min

4-11kw

920kg

WLDH-1000

1000L

400-600L

0-99min

7.5-15kw

1450kg

WLDH-1500

1500L

600-900L

0-99min

11-18.5kw

1950kg

WLDH-2000

2000L

800-1200L

0-99min

18.5-30kw

3160kg

WLDH-3000

3000L

1200-1800L

0-99min

18.5-30kw

3300kg

WLDH-4000

4000L

1600-2400L

0-99min

22-37kw

3620kg

WLDH-6000

6000L

2400-3600L

0-99min

37-55kw

5400kg

WLDH-8000

8000L

3200-4800L

0-99min

37-55kw

6880kg

WLDH-10000

10000L

4000-6000L

0-99min

45-75kw

7900kg

image001(001)


Feature

The primary purpose of the flour powder mixer is to effectively blend together materials that have a thick or sticky consistency, such as powder substances, liquid additives, or even pastes. This mixer is particularly suitable for handling challenging substances that are hard to clean. Its main strength lies in its ability to efficiently mix large quantities of materials, making it ideal for continuous and high-volume production requirements.


Advantage

The operation of the flour powder mixer is user-friendly and it ensures a uniform stirring process. Additionally, it offers the option to install a vacuum suction device for easy feeding. Depending on the user's needs, the flour powder mixer can be equipped with a forced mixing mechanism, allowing for the thorough blending of fine powder, clumped materials, multiple powder substances, and even water-containing ingredients. Moreover, it can also accommodate small quantities of ingredients, such as trace phases and additives, for precise mixing results.
